Structure Soil Structure Interaction Effects:
Seismic Analysis of Safety Related Collocated Concrete Structures

Jayaprakash A. Amin and Jagadish R. Joshi
Westinghouse Savannah River Company
Aiken, South Carolina-USA-29808

Jagdish J. Bhatt
Bechtel Savannah River Inc.
Aiken, South Carolina-USA-29808

This document was prepared in conjunction with work accomplished under Contract No. DE-AC09-96SR18500 with the U.S. Department of Energy.

DISCLAIMER

This report was prepared as an account of work sponsored by an agency of the United States Government. Neither the United States Government nor any agency thereof, nor any of their employees, makes any warranty, express or implied, or assumes any legal liability or responsibility for the accuracy, completeness, or usefulness of any information, apparatus, product or process disclosed, or represents that its use would not infringe privately owned rights. Reference herein to any specific commercial product, process or service by trade name, trademark, manufacturer, or otherwise does not necessarily constitute or imply its endorsement, recommendation, or favoring by the United States Government or any agency thereof. The views and opinions of authors expressed herein do not necessarily state or reflect those of the United States Government or any agency thereof.

This report has been reproduced directly from the best available copy.

Available for sale to the public, in paper, from:  U.S. Department of Commerce, National Technical Information Service, 5285 Port Royal Road, Springfield, VA 22161,  phone: (800) 553-6847,  fax: (703) 605-6900,  email:  orders@ntis.fedworld.gov   online ordering:  http://www.ntis.gov/support/ordering.htm

Available electronically at  http://www.osti.gov/bridge/

Available for a processing fee to U.S. Department of Energy and its contractors, in paper, from: U.S. Department of Energy, Office of Scientific and Technical Information, P.O. Box 62, Oak Ridge, TN 37831-0062,  phone: (865 ) 576-8401,  fax: (865) 576-5728,  email:  reports@adonis.osti.gov

Abstract

The Process, Purification and Stack Buildings are collocated safety related concrete shear wall structures with plan dimensions in excess of 100 feet. An important aspect of their seismic analysis was the determination of structure soil structure interaction (SSSI) effects, if any.

The SSSI analysis of the Process Building, with one other building at a time, was performed with the SASSI computer code for up to 50 frequencies. Each combined model had about 1500 interaction nodes. Results of the SSSI analysis were compared with those from soil structure interaction (SSI) analysis of the individual buildings, done with ABAQUS and SASSI codes, for three parameters: peak accelerations, seismic forces and the in-structure floor response spectra (FRS). The results may be of wider interest due to the model size and the potential applicability to other deep soil layered sites.

Results obtained from the ABAQUS analysis were consistently higher, as expected, than those from the SSI and SSSI analyses using the SASSI. The SSSI effect between the Process and Purification Buildings was not significant. The Process and Stack Building results demonstrated that under certain conditions a massive structure can have an observable effect on the seismic response of a smaller and less stiff structure.

Introduction

Process Building, Purification Building and Stack Building are adjacent safety related structures in K area at a U. S. Department of Energy (DOE) facility at the Savannah River Site (SRS). Structural analysis and evaluation for natural phenomena hazards (NPH) effects on the building structures was required for a project at SRS. New DOE missions at SRS have given rise to the continuing utility for these nearly fifty years old massive reactor buildings. The buildings were qualified for the performance category 3 (PC3) NPH effects using criteria to comply with the current DOE orders [DOE 420.1 1996] and an associated standard [DOE-STD-1020 1996].

An important aspect of the seismic analysis consisted of the determination of the structure soil structure interaction (SSSI) effects, if any, between the collocated buildings. Soil structure interaction (SSI) analysis of the individual buildings was first performed. The SSSI effect was determined by comparing results of the SSI analysis for sets of two buildings with those for the individual building. This paper summarizes results of the SSSI effects between the Process and Purification Buildings, and between Process and Stack Buildings.

Building Descriptions

The layout of the three buildings is shown in Fig. 1.


Figure 1. Layout of Building Structures


The 105-K Area Process Building is a massive reinforced concrete structure supported approximately 40 feet below the finished grade. The Building has a reinforced concrete basemat foundation of varying thickness with the main foundation mat thickness of 10 feet. The approximate foundation dimensions are 240 feet along the east west direction and 220 feet along the north south direction. A portion of the Process Building rises approximately 148 feet above the finished grade level.

The Purification Building lies north east of the Process Building and is separated from the Process Building by a 1-inch expansion joint above the grade level. Its 3.5 feet thick basemat is separated from the Process Building basemat by a distance of approximately one foot. The Purification Building basemat dimensions are 75 feet east west by 105 feet north south at a depth of 14 feet below grade.

The Stack Building lies east of the Process Building and is separated from the Process Building by a 1-inch expansion joint above the grade level. Its 7 feet thick basemat is separated from the Process Building basemat by a distance of approximately 15 feet. The Stack Building basemat dimensions are 135 feet east west by 100 feet north south at a depth of 14 feet below the finished grade level.

Computer Codes

SSI analysis was performed using the SASSI [Lysmer 1988] and ABAQUS [ABAQUS 1998] computer codes. Typically the three dimensional building model used in the SASSI code incorporates eccentricities and is attached to a relatively rigid box that represents the building below grade. The three dimensional building model used in the ABAQUS code is attached to springs and dashpots that represent the embedded foundation effects for the average soil properties consistent with the design basis seismic motion. The above ground structural representation of the buildings is identical in SASSI and ABAQUS models. The three dimensional models were developed using standard engineering procedures following guidelines established by ASCE [ASCE 4 1986].

The ABAQUS models were used for comparison and trending purposes. The ABAQUS analyses demonstrated that the upper bound (UB) forces are higher than the corresponding forces using the best estimate (BE) and lower bound (LB) soil profiles.

SSSI effects were evaluated through a parametric study using the upper bound soil properties, for which only a relatively crude model of the soil medium was required. Because of realistic limitations of CRAY computational storage and analysis time it was not feasible to analyze the three buildings simultaneously.

Soil Data

The rock level at the site is more than 1000 feet below grade.

Input Ground Motion

The facility specific PC3 design basis horizontal free field input spectra for 5 percent damping is given in Fig. 2. For the purposes of this analysis the vertical motion is conservatively considered equal to the horizontal.



Figure 2. Input Spectra

Facility specific dynamic soil profile is given in Table 1 which includes elevations (El) and average shear wave velocity, Vs. Soil types B and C refer to Tobacco Road, and Dry Branch, Santee or Congree formations, respectively.

Table 1. Dynamic Soil Profile

El. from-to
Feet

Type/
Soil

Poisson
Ratio

Unit Wt.
lb./cft

Vs
ft./sec

270-225

B

0.30

120

1435

225-210

B

0.30

117

1186

210-180

C

0.47

124

1149

180-150

C

0.47

120

1124

150-125

C

0.47

115

1080

125-110

C

0.47

125

1313

110-70

C

0.47

125

1431



The variation of the soil shear modulus with soil strain is given by G/ Gmax = 1/ (1 + (e/er)), where

G is shear modulus corresponding to the shear strain of e,

Gmax is the low strain or the maximum shear modulus, which is equal to (Vs2 x mass density of soil),

Vs is the shear wave velocity of the soil, and

er is the reference strain which is equal to 0.044 and 0.077 for formations B and C, respectively.

The variation of soil damping ratio (%) with respect to the soil shear strain, e, is given in Table 2 for the two soil types B and C.

Table 2. Variation of Soil Damping (%) with Shear Strain

Shear

For Soil

Shear

For Soil

Strain

Type B

Type C

Strain

Type B

Type C

1E-5

0.625

0.825

5E-3

1.747

1.470

1E-4

0.625

0.825

1E-2

2.790

2.108

2E-4

0.647

0.835

2E-2

4.605

3.281

3E-4

0.670

0.846

3E-2

6.139

4.336

5E-4

0.717

0.871

5E-2

8.614

6.162

1E-3

0.835

0.936

1E-1

12.799

9.605

2E-3

1.070

1.070

2E-2

17.425

13.951

3E-3

1.300

1.205

3E-1

-

16.68



Three statistically independent acceleration time histories whose response spectra envelop the free field PC3 design basis spectra are generated. Iterated soil properties for the design basis seismic input were determined using the computer code SHAKE [Idriss 1992]. Properties of soil elements in SASSI, and the spring and damping values in ABAQUS models are based on the iterated or high strain soil properties. The average upper bound (UB) shear wave velocity for the top 100 feet of soil was about 1500 feet/sec.

Geological Origins

The Coastal Plain stratigraphic section, which includes the SRS, is divided into several geological formations and groups based principally on age and lithology. For the structures under consideration all soils in the top two hundred feet, considered explicitly, are Tertiary sediments. In the top two hundred feet two soil types are encountered as shown in Tables 1 and 2: B and C. Type B refers to the Tobacco Road formation whereas Type C refers to Dry Branch, Santee, Warley Hill and Congree formations. Within individual soil types B and C certain properties vary with formations; however, the variations of the normalized shear modulus and of damping with shear strain remain the same as indicated in Tables 1 and 2.

Building Models

Significant structural properties of the Process Building are given in Table 3. Moments of inertia are given in 1E6 ft4. The shear areas and moments of inertia between two elevations are given in the table in the row for the higher elevation. Area for shear in north south direction is shown under N-S, and the moment of inertia resisting the corresponding moment is shown under E-W. The weight of the structure is input as mass at elevations shown in the table; members are considered weightless. Torsional moments of inertia and the mass moments of inertia are not given in the table.

Table 3. Structural Properties of the Process Building

Elevation

Area, Feet2

Moment of Inertia

Mass

Feet

N-S

E-W

N-S

E-W

Kip-Sec2/Foot

148

83

83

.03

.03

13

130

83

83

.03

.03

11

125

180

165

.12

.14

7

120

180

165

.12

.14

15

110

180

165

.12

.14

28

91

314

342

.49

.31

143

66

763

1293

11.1

1.21

378

48

634

2353

20.0

0.84

518

34

2303

3417

33.3

5.47

715

15

2496

3494

35.7

3.58

642

0

4590

3742

75.3

20.1

1708

-14

4590

3742

75.3

20.1

5050

-40

-

-

-

-

4097



The Process Building model is schematically shown in Fig. 3. The SASSI impedance model of the Stack Building has 1360 interaction nodes, 960 soil elements and 728 shell elements. The SASSI seismic analysis model for the Process Building has 1392 nodes, 960 soil elements, 26 beam elements, 728 shell elements, and 124 spring elements. The spring elements, not shown in Fig. 3, are added to rigidly connect the building stick below grade to the embedded box.


Figure 3. Process Building Model

Similarly significant structural properties for the Purification Building are given in Table 4 with notations of Table 3. The moments of inertia of 100 E6 ft4 are taken to represent rigid flexural behavior. The areas represent realistic shear wall contributions for the two directions.

Table 4. Structural Properties of the Purification Building

Elevation

Area, Feet2

Moment of Inertia

Mass

Feet

N-S

E-W

N-S

E-W

Kip-Sec2/Foot

47

467

134

100.

100.

138

13

640

241

100.

100.

208

0

458

134

100.

100.

164

-12

-

-

-

-

73



The Purification Building model is schematically shown in Fig. 4. The SASSI impedance model of the Purification Building has 96 interaction nodes, 35 soil elements and 94 shell elements. The SASSI seismic analysis model of the Purification Building has 110 nodes, 35 soil elements, 9 beam elements and 94 shell elements.

Similarly significant structural properties for the Stack Building are given in Table 5 with notations of Table 3 except that the mass of the stack is represented by member weights.


Figure 4. Purification Building Model



Table 5. Structural Properties of the Stack Building

Elevation

Area, feet2

Moment of Inertia

Mass

Feet

N-S

E-W

N-S

E-W

Kip-Sec2/Foot

200

15

15

1.06

1.06

-

195

15

15

1.08

1.08

-

185

16

16

1.11

1.11

-

175

16

16

1.15

1.15

-

165

20

20

1.49

1.49

-

155

23

23

1.82

1.82

-

145

23

23

1.87

1.87

-

135

24

24

1.93

1.93

-

125

24

24

2.0

2.0

-

115

24

24

2.05

2.05

-

105

27

27

2.28

2.28

-

95

30

30

2.35

2.35

-

85

34

34

2.73

2.73

-

75

37

37

2.99

2.99

-

65

40

40

3.18

3.18

-

55

992

1104

1080

1910

106

-7.5

-

-

-

-

41



The Stack Building model is schematically shown in Fig. 5. The SASSI impedance model of the Stack Building has 160 interaction nodes, 63 soil elements and 158 shell elements. The SASSI seismic analysis model for the Stack Building has 180 nodes, 63 soil elements, 18 beam elements, 158 shell elements and 124 spring elements. The spring elements, not shown in Fig. 5, are added to rigidly connect the building stick below grade to the embedded box.


Figure 5. Stack Building Model



Process and Purification Buildings

SASSI seismic analysis models for the Process and Purification Buildings described earlier are combined together to form a combined SSSI model. The combined model has 1520 nodes including 1474 interaction nodes, 995 soil elements, 35 beam elements, 822 shell elements and 124 spring elements. The model has few more nodes than the earlier two models combined together because it has some extra soil nodes. The combined SSSI model for the Process and Purification Buildings is shown in Fig. 6.

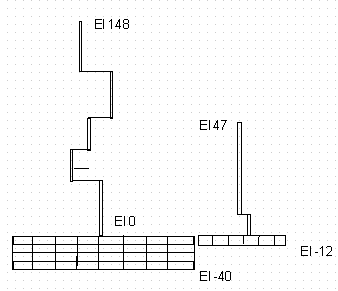

Figure 6. SSSI Model for Process and Purification Buildings



Process and Stack Buildings

SASSI seismic analysis models for the Process and Stack Buildings described earlier are combined together to form a combined SSSI model. The combined model has 1578 nodes including 1526 interaction nodes, 1023 soil elements, 44 beam elements, 886 shell elements and 124 spring elements. The model shows few more nodes than the earlier two models combined together because it has some extra soil nodes. The combined SSSI model for the Process and Stack Buildings is shown in Fig. 7.

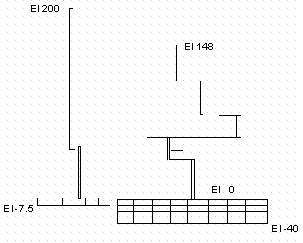

Figure 7. SSSI Model for Process and Stack Buildings

SASSI Analysis

The SASSI models for individual and combined buildings are analyzed frequency by frequency, or for a set of frequencies. Results of various frequencies are combined together by running the COMBINE module of the SASSI. MOTION and STRESS modules of the SASSI are run to obtain transfer functions, peak accelerations, stress resultants and response spectra at critical locations of the buildings, for three mutually orthogonal directions.

Transfer functions were carefully reviewed in order to make sure that amplification has not occurred for frequencies in between the frequency values initially considered. Intermediate values of frequency were added as needed. Typically the final analysis was performed for 30 to 50 frequencies.

A comparison of the results of the SSI and SSSI models is provided in this paper. Three parameters were investigated as a measure of the SSSI effect, primarily by computing the ratio of the parameter from the SASSI analysis of the combined model to that from the SSI analysis of the individual building. The parameters are the peak acceleration at a floor level, seismic force such as shear force, axial force or bending moment at a floor level, and the in-structure floor response spectra (FRS).

Peak acceleration at an elevation is the maximum absolute value obtained from the acceleration time history at the elevation, for the analysis under consideration, and approximates the large frequency acceleration or the zero period acceleration associated with the floor response spectra at that elevation.

Process and Purification Buildings

Peak Accelerations

A comparison of peak accelerations at various elevations from the SSI model of the Process Building alone, using SASSI and ABAQUS codes, and the combined SASSI model of the Process and Purification Buildings is provided in Table 6. Ratios for the east west (E-W) and vertical excitations are similar to those for the north south (N-S) excitations shown for various elevations in the table.

Table 6. N-S Peak Accelerations (g) for Process Building

Elevation

SSSI

SSI

N-S Ratio

ABAQUS

Feet



SSSI/SSI

SSI

148

.604

.574

1.05

0.99

91

.322

.319

1.01

0.51

48

..22

.227

0.97

0.31

0

.152

.153

0.99

0.19

-40

.139

.139

1.00

0.16



Similar comparison of peak accelerations for the Purification Building is given in Table 7.

Table 7. N-S Peak Accelerations (g) for Purification Building

Elevation

SSSI

SSI

N-S Ratio

ABAQUS

Feet



SSSI/SSI

SSI

47

.207

.211

.98

.267

13

.164

.178

.92

.222

0

.158

.161

.98

.209

-12

.159

.151

1.05

.162



The ratio for the north south peak accelerations, for the north south seismic event, varies between 0.97 to 1.05 for the Process Building (Table 6) and between 0.92 to 1.05 for the Purification Building (Table 7). Thus the effect of SSSI is not significant on north south accelerations, and the buildings are essentially decoupled in the north south direction.

The ratio for the east west peak accelerations, not shown in the tables, varies between 0.99 to 1.04 for the Process Building and between 0.93 to 1.00 for the Purification Building. Thus the effect of SSSI is not significant on east west accelerations also and the buildings are decoupled.

The ratio for the vertical peak accelerations, not shown in the tables, varies between 0.97 to 1.01 for the Process Building and between 1.14 to 1.18 for the Purification Building. Therefore, there is some effect of SSSI on the Purification Building response but this has insignificant impact on the overall results.

Seismic Loads

A comparison of seismic loads for the north south seismic event, from the model of the Process Building alone (SSI analysis), and the combined model of the Process and Purification Buildings (SSSI analysis) both using SASSI code, is provided in Table 8.

Table 8. N-S Seismic Loads for Process Building

Elevation

SSSI

SSI

Ratio

SSSI

SSI

Ratio

Feet

Shears

(E3 Kips)



Moments

(E3 Kip-Ft)



148

-
-
-
-
-
-

91

0.72

0.73

0.99

16.2

16.4

0.99

48

2.55

2.56

1.0

100.

102

0.98

0

8.16

7.83

1.04

308

303

1.02

-40

24.7

24.4

1.01

1229

1211

1.01



Similar comparison of seismic loads for the Purification Building is given in Table 9.

Table 9. N-S Seismic Loads for Purification Building



Elevation

SSSI

SSI

Ratio

SSSI

SSI

Ratio

Feet

Shears

(E3 Kips)



Moments

(E3Kip-Ft)



47

-
-
-
-
-
-

13

.926

.935

.99

34.4

33.2

1.04

0

2.07

2.13

.97

64.7

62.2

1.04

-12

2.73

2.95

.93

102

97

1.05



The ratio for the north south shear forces, for the north south seismic event, varies between 0.97 to 1.04 for the Process Building and between 0.93 and 0.99 for the Purification Building. That is, the effect of SSSI is not significant on the north south shear forces. The ratios for the moment are slightly less than those for the corresponding shears. Thus Process Building and Purification Buildings are decoupled in the north south direction.

Similarly the ratio for the east west shear forces, not shown in the tables, varies between 0.97 to 1.02 for the Process Building and between 0.91 and 0.93 for the Purification Building. Therefore, SSSI reduces the response of the Purification Building to some extent.

The ratio for the vertical loads, for a vertical seismic event, not shown in the tables, varies between 1.01 to 1.03 for the Process Building and between 1.10 and 1.12 for the Purification Building. That is, SSSI gives slightly increased loads for the Purification Building for the vertical excitation.

Floor Response Spectra

For the horizontal north south (N-S) earthquake, a comparison between the FRS, at El. 48 and 148, for the Process Building alone (SSI analysis) with that from the combined model of the Process and Purification Buildings (SSSI analysis), is shown in Fig. 8. The SASSI code is used in both analyses.

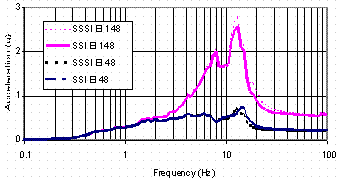

Figure 8. N-S FRS for Process Building El. 48 and 148

The FRS at El. 0 and –40 feet are not shown because there is hardly any difference between the spectra at these elevations obtained from the SSI and SSSI analyses.

Similar comparison of FRS at El. 0 and 47 of the Purification Building is shown in Fig. 9.

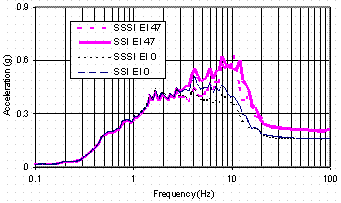

Figure 9. N-S FRS for Purification Building El. 0 and 47



Fig. 8 and 9 indicate that the effect of SSSI in the north south direction is not significant.

For the horizontal east west (E-W) earthquake, a comparison between the FRS, at El. 40 and 148, for the Process Building alone (SSI analysis) with that from the combined model of the Process and Purification Buildings (SSSI analysis) is shown in Fig. 10. The SASSI code is used in both analyses.

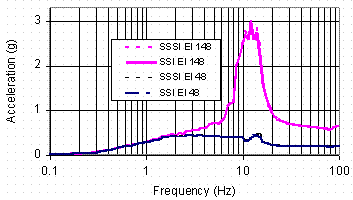

Figure 10. E-W FRS for Process Building El. 48 and 148



The FRS at El. 0 and –40 feet are not shown because there is hardly any difference between the spectra obtained at these elevations from the SSI and SSSI analyses.

Similar comparison of FRS at El. 0 and 47 of the Purification Building is shown in Fig. 11. Again, the effect of SSSI is not significant in the east west direction.

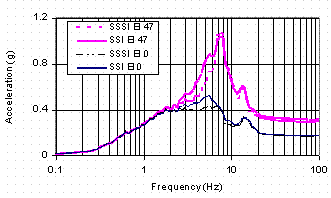

Figure 11. E-W FRS for Purification Building El. 0 and 47

For the vertical (V) earthquake, a comparison between the FRS, at El. –40 and 148, for Process Building alone (SSI analysis) with that from the combined model of the Process and Purification Buildings (SSSI analysis), is shown in Fig. 12.

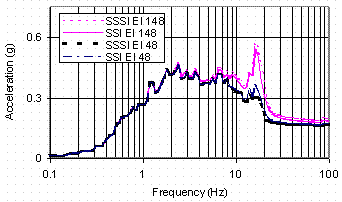

Figure 12. V FRS for Process Building El. 48 and 148

The SASSI code is used in both analyses.

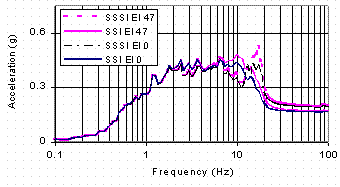

Similar comparison of FRS at El. 0 and 47 of the Purification Building is shown in Fig. 13. The SSSI effect in the vertical direction is not significant.


Figure 13. V FRS for Purification Building El. 0 and 47

Summary of Results

For this parametric study, SSSI effects between the Process and Purification Buildings are not significant. The results obtained from the ABAQUS analyses are consistently higher than the corresponding results obtained from the SSI analysis of the individual building and SSSI analysis of the combined buildings.

Process and Stack Buildings

Peak Accelerations

A comparison of peak accelerations at various elevations from the SSI model of the Process Building alone, using ABAQUS and SASSI codes, and the combined SASSI model of the Process and Stack Buildings is provided in Table 10.

Table 10. N-S Peak Accelerations (g) for Process Building

Elevation

SSSI

SSI

N-S Ratio

ABAQUS

Feet



SSSI/SSI

SSI

148

.551

.574

0.99

.99

91

.316

.319

0.99

.51

48

.221

.227

0.97

.31

0

.152

.153

0.99

.19

-40

.141

.139

1.01

.16



Similar comparison of peak accelerations for the Stack Building is given in Table 11.

Table 11. N-S Peak Accelerations (g) for Stack Building

Elevation

SSSI

SSI

N-S Ratio

ABAQUS

Feet



SSSI/SSI

SSI

200

.776

.762

1.02

1.02

165

.410

.409

1.00

.53

55

.184

.196

0.94

.24

0

.167

.156

1.07

.20

-7.5

.165

.151

1.09

.20



The ratio for the north south peak accelerations, for the north south seismic event, varies between 0.96 to 1.02 for the Process Building and between 0.94 to 1.07 for the Stack Building. Thus the effect of SSSI is not significant on north south accelerations, and the buildings are essentially decoupled.

The ratio for the east west peak accelerations, not shown in the tables, varies between 0.98 to 1.06 for the Process Building and between 1.0 to 1.15 for the Stack Building. Thus there is a minor SSSI effect on the acceleration response of the Stack Building during the east west seismic event.

The ratio for the vertical peak accelerations, not shown in the tables, varies between 0.99 to 1.06 for the Process Building and between 0.97 to 1.04 for the Stack Building. Therefore, the effect of SSSI is not significant on the vertical accelerations of the Process and Stack Buildings, using SASSI.

Seismic Loads

A comparison of seismic loads for the north south seismic event, from the model of the Process Building alone (SSI analysis), and the combined model of the Process and Stack Buildings (SSSI analysis), both using the SASSI code, is provided in Table 12.

Table 12. N-S Seismic Loads for Process Building

Elevation

SSSI

SSI

Ratio

SSSI

SSI

Ratio

Feet

Shears (E3 Kips)



Moments (E3 Kip-Ft)



148

-
-
-
-
-
-

91

0.70

0.73

0.96

15.6

16.4

0.95

48

2.51

2.56

0.98

98.9

102

0.97

0

8.01

7.83

1.02

302

303

1.02

-40

24.5

24.4

1.00

1194

1211

0.99



A similar comparison of seismic loads for the east west seismic event for the Stack Building is given in Table 13. The load ratios for the east west direction are significantly higher than those for the north south direction.

Table 13. E-W Seismic Loads for Stack Building

Elevation

SSSI

SSI

Ratio

SSSI

SSI

Ratio

Feet

Shears (E3 Kips)



Moments (E3 Kip-Ft)



200

-
-
-
-
-
-

165

.02

.01

1.14

0.07

0.06

1.19

145

.13

.12

1.07

3.7

3.4

1.10

55

.32

.25

1.26

18.4

18.1

1.01

-7.5

2.59

2.53

1.03

165

148

1.12



The ratio for the north south shear forces, for the north south seismic event, varies between 0.95 to 1.02 for the Process Building and between 0.91 and 1.03 for the Stack Building. That is, the effect of SSSI is not significant on the north south shear forces. Thus the Process and Stack Buildings are decoupled in the north south direction.

Similarly the ratio for the east west shear forces varies between 0.96 to 1.04 for the Process Building and between 1.02 and 1.30 for the Stack Building. At the bottom of the Stack Building even with the high shear force ratio, the ratio for the corresponding bending moments is only 1.01. That is, the effect of SSSI is not significant in the east west direction.

The ratio for the vertical loads, for a vertical seismic event, varies between 1.01 to 1.06 for the Process Building and between 0.95 and 1.03 for the Stack Building. That is, the effect of SSSI is not significant in the vertical direction.

Floor Response Spectra

For the horizontal north south earthquake, a comparison between the FRS, at El. 48 and 148, for the Process Building alone (SSI analysis) with that from the combined model of the Process and Stack Buildings (SSSI analysis), is shown in Fig. 14. The SASSI code is used in both analyses.

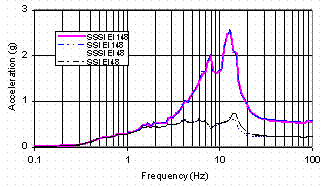

Figure 14. N-S FRS for Process Building El. 48 and 148

The FRS at El. 0 and –40 feet are not shown because there is hardly any difference between the spectra at these elevations obtained from the SSI and SSSI analyses.

A similar comparison of FRS at El. –7.5 and 200 of the Stack Building is shown in Fig. 15. The effect of SSSI in the north south direction is not significant.

As expected there is significant amplification at the stack frequency of about 2 Hz and a less amplification at the structural frequency of about 8 Hz of the Stack Building.

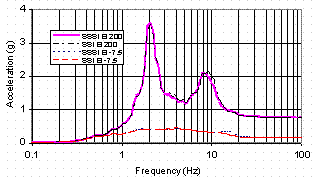

Figure 15. N-S FRS for Stack Building El. –7.5 and 200

For the horizontal east west earthquake, a comparison between the FRS, at El. 48 and 148, for the Process Building alone (SSI analysis) with that from the combined model of the Process and Stack Buildings (SSSI analysis), is shown in Fig. 16. The SASSI code is used in both analyses.

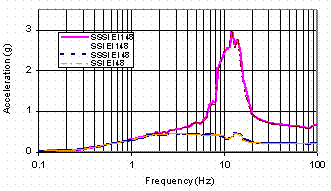

Figure 16. E-W FRS for Process Building El. 48 and 148

Similar comparison of FRS at El. –7.5 to 200.0 of the Stack Building is shown in Fig. 17.

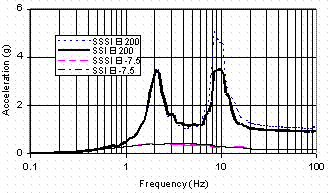

Figure 17. E-W FRS for Stack Building El. –7.5 and 200

It is observed that in the east west direction SSSI has an effect on the Stack Building FRS; that is, the Stack Building is driven by the Process Building in the east west direction. However the influence of the "shadow" or rocking effect is localized in that the stress resultants are not significantly increased.

For the vertical earthquake, a comparison between the FRS, at El. 48 to 148, for Process Building alone (SSI analysis) with that from the combined model of the Process and Stack Buildings (SSSI analysis), is shown in Fig. 18.

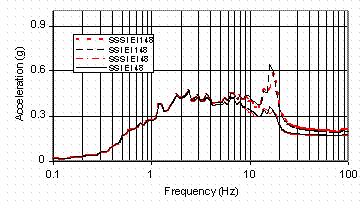

Figure 18. V FRS for Process Building El. 48 and 148

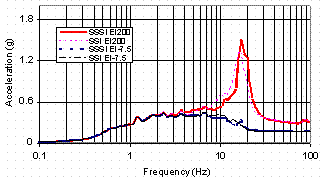

A similar comparison of FRS at El. –7.5 to 200.0 of the Stack Building is shown in Fig. 19. The SSSI effect in the vertical direction is not significant.


Figure 19. V FRS for Stack Building El. 7.5 and 200

Summary of Results

For this parametric study SSSI effects between the Process Building and the Stack Building are not significant. Even where there is some effect, the SSI and SSSI results are significantly lower than the corresponding ABAQUS results, which are used in the structural evaluation of the buildings.

Conclusions

There is no significant structure soil structure interaction (SSSI) effect between the Process and Purification Buildings.

For the north south or vertical earthquakes there is no significant SSSI effect between the Process Building and Stack Buildings.

For the east west earthquake the Stack Building is driven by the Process Building by imparting a rocking motion. However the effect is localized to a frequency of about 8.5 Hz, and the forces at the base of the stack, and below, are only slightly increased due to the SSSI effect.

Thus the structure soil structure interaction between the Process and Stack Buildings in the east west direction is observable but not significant.

Acknowledgement

The information contained in this paper was developed during the course of work under Contract No. DE-AC09-96SR18500 with the United States Department of Energy.

References

  1. "Facility Safety", DOE Order 420.1[1996], U. S. Department of Energy, Change 2.
  2. "Department of Energy Natural Phenomena Hazards Design and Evaluation Criteria for DOE Facilities", DOE-STD-1020-94 [1996], U. S. Department of Energy, Change Notice 1.
  3. Lysmer, J., F. Ostadan, et al, [1988], "SASSI A System for Analysis of Soil-Structure Interaction", User’s Manual, University of California at Berkeley.
  4. "ABAQUS/Standard User’s Manual" [1998], Version 5.8, Hibbit, Karlsson & Sorensen, Inc., Volumes 1 and 2.
  5. "Seismic Analysis of Safety-Related Nuclear Structures", American Society of Civil Engineers Standard, ASCE 4-86 [1986].
  6. Idriss, I. M., J. I. Sun., et al, [1992], "SHAKE – ’91 Computer Code – A Computer Code for Conducting Equivalent Linear Seismic Response Analyses of Horizontally Layered Soil Deposit", University of California at Berkeley.
